I-Thermal Power Plant Steel Frame

I-Thermal Power Plant Steel Frame iwuhlelo lwesakhiwo sensimbi esithwala imithwalo esiklanyelwe ngokukhethekile izimboni zamandla ashisayo, olusetshenziselwa ukusekela izinto ezisindayo ezifana namabhayela namasethi e-turbo-generator, kanye nokusebenza njengohlaka lwezakhiwo ezinkulu. I-EIHE Steel Structure (EHSS) ingumkhiqizi wesakhiwo sensimbi onobuchwepheshe obuphambili. Sinolwazi kumaphrojekthi wamandla enuzi, ahlangabezana nezindinganiso eziqinile zezitshalo zamandla ashisayo.

Thumela Uphenyo

Incazelo Yomkhiqizo

I-Thermal Power Plant Steel Frame ngokuyinhloko iqukethe izingxenye zensimbi nensimbi, ezisebenza njengesiphathi esiyinhloko sobunjiniyela bomphakathi kanye nokufakwa kwemishini ezimbonini zamandla ashisayo. Imikhiqizo ekhiqizwe ifektri yethu ifaka izinzuzo eziningi njengamandla aphezulu, isisindo somzimba esilula, ukumelana nokuzamazama komhlaba okuhle kakhulu kanye nokumelana komoya, kanye nezakhiwo zokuvikela ukuqhuma nezimelana nokugqwala.

Imikhiqizo yethu yesakhiwo sensimbi isetshenziswa ikakhulukazi ezinhlelweni ezimbili ezibalulekile.

▷ Isakhiwo sensimbi ye-boiler: isakhiwo sensimbi esizimele esisetshenziselwa ukumisa nokusekela imishini eyinhloko.

▷ Isakhiwo esiyinhloko sensimbi yendlu yamandla: isakhiwo esikhulu sesakhiwo esihlanganisa amayunithi e-turbo-generator, amakamelo okulawula nezinye izinsiza.

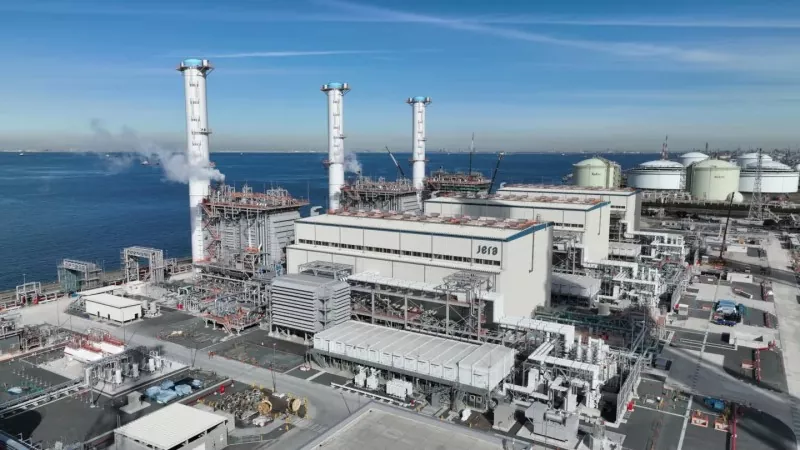

Thermal Power Plant Steel Frame

Izitshalo zamandla ashisayo zinezidingo ezikhethekile ngokwezinto zokwakha, ukuklama nokuvikela. Ukuze kuhlangatshezwane nezindinganiso eziphakeme zalezi zinhlelo ezimbili, i-EHSS ikhetha insimbi yekhwalithi ephezulu futhi inamathisele ukubaluleka okukhulu ekwakhiweni okungashi kanye nokunqanda ukugqwala ukuze kwakhiwe Uhlaka lwakho Lwensimbi Lwesitsha Samandla Ashisayo.

I-I-Fireproof Coating	Ukuqina Kokunamathela	Umkhawulo Wokumelana Nomlilo	Izici	Izimo Zohlelo Lokusebenza
Intumescent	<5mm	1.5-2.0 amahora	Indawo ebushelelezi ngokuqhathaniswa enomphumela othile wokuhlobisa	Izinhlelo zokusebenza zasendlini noma amaphrojekthi anezidingo zobuhle
Okungeyona intumescent	> 10mm	2.0-3.0 amahora	Indawo eqinile enokuqina okuhle	Izinhlelo zokusebenza zangaphandle noma izindawo ezisengozini enkulu yomlilo

I-I-Anticorrosive Coating	Ukuqina Kokunamathela	Umsebenzi oyinhloko	Isendlalelo
I-Epoxy Zinc Primer ecebile	70-80μm	Ukuvikelwa kwe-Cathodic	Isendlalelo sokuqala
I-Epoxy Micaceous Iron Oxide Ijazi Eliphakathi	80-125μm	I-Barrier insulation	Isendlalelo esimaphakathi
Ijazi Eliphezulu Le-Polyurethane / Ijazi Eliphezulu Le-Fluorocarbon / Upende Werabha We-Chlorinated	60-80μm	Ukumelana nesimo sezulu, ukumelana nabezindaba kanye nomhlobiso	Isendlalelo esiphezulu

Amafreyimu Ensimbi Yesikhungo Samandla Ashisayo adinga izixazululo ezihlukene zokuvikela ezimweni ezihlukene, ngenxa yezindawo ezinobungozi obukhulu ezikhona ezimbonini zamandla ashisayo.

Isicelo Scenario	Izici	I-I-Coating System	Ubukhulu obuphelele
Isakhiwo Sesikhungo Samandla Esiyinhloko sasendlini	C3 Imvelo	I-Epoxy Zinc-rich Primer (60μm) + I-Epoxy Micaceous Iron Oxide Intermediate Coat (80μm) + Ijazi Eliphezulu Le-Polyurethane (80μm)	≥220μm
I-Outdoor Boiler Steel Frame	Imvelo ye-C5-M	I-Epoxy Zinc-rich Primer (80μm) + I-Epoxy Micaceous Iron Oxide Intermediate Coat (120μm) + Ijazi Eliphezulu Le-Fluorocarbon (100μm) + Ingubo Eminyene Yefilimu Engashisi	≥300μm
Uhlelo Lokuphatha Amalahle	Ukuswakama Okuphezulu / Ukuhuzuka	I-Epoxy Zinc-rich Primer (75μm) + Ijazi Elimaphakathi Le-Epoxy Eyakhiwe Kakhulu (150μm) + Ijazi Eliphezulu Elingazweli I-Abrasion Polyurethane (100μm)	≥325μm
Flue Duct / Condensation Zone	I-Acid Eqinile	I-Phenolic Epoxy Primer Engazweli Kumazinga Okushisa aphezulu (100μm) + I-Phenolic Epoxy Flake Coating (200μm)	≥300μm

Ukugeleza Kwenqubo

Imikhiqizo yethu ye-Thermal Power Plant Steel Frame ilethwa ngezinqubo ezingu-5 ezibalulekile:

1. Ukuqamba

Fabrication

2. Ezokuthutha & Isitoreji

Transportation & Storage

3. Umhlangano Wendawo

On-site Assembly

4. Ukuphakamisa nokufakwa

Hoisting & Installation

5. Ukwamukelwa Kwekhwalithi

Quality Acceptance

Ngemva kokuphothula lezi zinqubo, Uhlaka lwakho Lwensimbi Lwezimboni Ezishisayo luzobe lulungele ukusetshenziswa cishe ezinyangeni ezimbili kuya kwezintathu.
