Inkundla enkulu yeSpan Steel Space Frame

I-Large Span Steel Space Frame Stadium iyindawo yezemidlalo yesakhiwo sensimbi ebonakala "nge-span enkulu" kanye "nohlaka lwesikhala". Imikhiqizo ekhiqizwa yi-EIHE Steel Structure (EHSS) isetshenziswa kabanzi ezakhiweni zomphakathi njengezinkundla ezinkulu, izindawo zokuzivocavoca kanye nezikhungo zemihlangano nemibukiso. Njengomhlinzeki wekhwalithi ephezulu, sisekela ukuzibophezela kwethu kwasekuqaleni kwekhwalithi emikhiqizweni yethu yesakhiwo sensimbi futhi silwela ukukulethela izinzuzo zezomnotho ezibaluleke kakhulu.

Thumela Uphenyo

Incazelo Yomkhiqizo

I-Large Span Steel Space Frame Stadium isebenzisa isistimu yohlaka lwesikhala njengesakhiwo sayo esithwala umthwalo ophahleni, okwenza kube nesikhala esikhulu kakhulu.

Izakhiwo ezikhiqizwe imboni ye-EHSS zifakwe uphahla olunezingqimba ezimbili, ukufakwa kwe-thermal nomsindo, ukuvikela umlilo kanye nezinhlelo zokulwa nokugqwala, kanye nesistimu yokukhipha amanzi ehlakaniphile, ebonisa ukubukeka okulula nokuhle okungaphakathi okubanzi.

Imikhiqizo yethu iyaziqhayisa ngobude obukhulu, ukusabalalisa ingcindezi efanayo, amandla aphezulu kanye nesivinini sokwakha esisheshayo, okuyenza iqhudelane kakhulu emakethe.

Ubukhulu	I-Core Advantage
Amandla we-Span	30-200m
Ukusetshenziswa Kwensimbi	25-65 kg/m²
Ukusebenza Kwezindleko	380–1,800 RMB/m²
Izinga Lokulungiselela	90%+
Ukunemba Okuhlangene	Ukubekezelela ≤ ±0.5mm
Ikhwalithi yokulawula	Class 1 Welds

Kungakhathaliseki ukuthi uhlose ukwakha inkundla yezemidlalo i-Large Span Steel Space Frame Stadium esezingeni lomhlaba kuleli noma phesheya kwezilwandle, singakulethela yona. I-EHSS ithole izitifiketi kumazinga afanele wamazwe ngamazwe ase-Europe nase-United States.

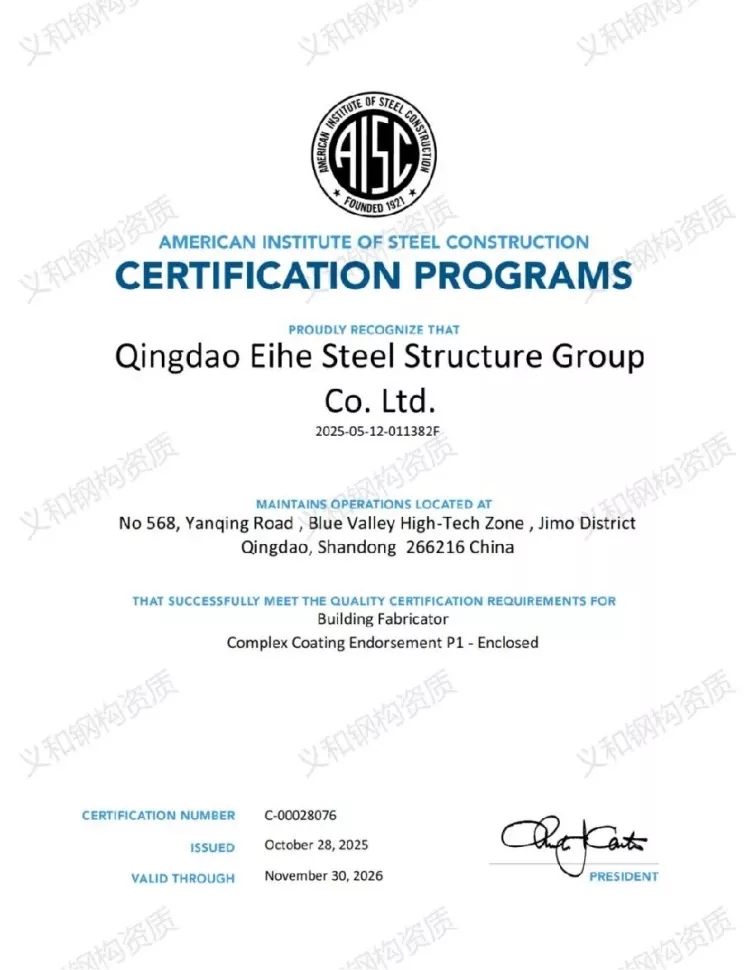

● I-American Standard

American Standard

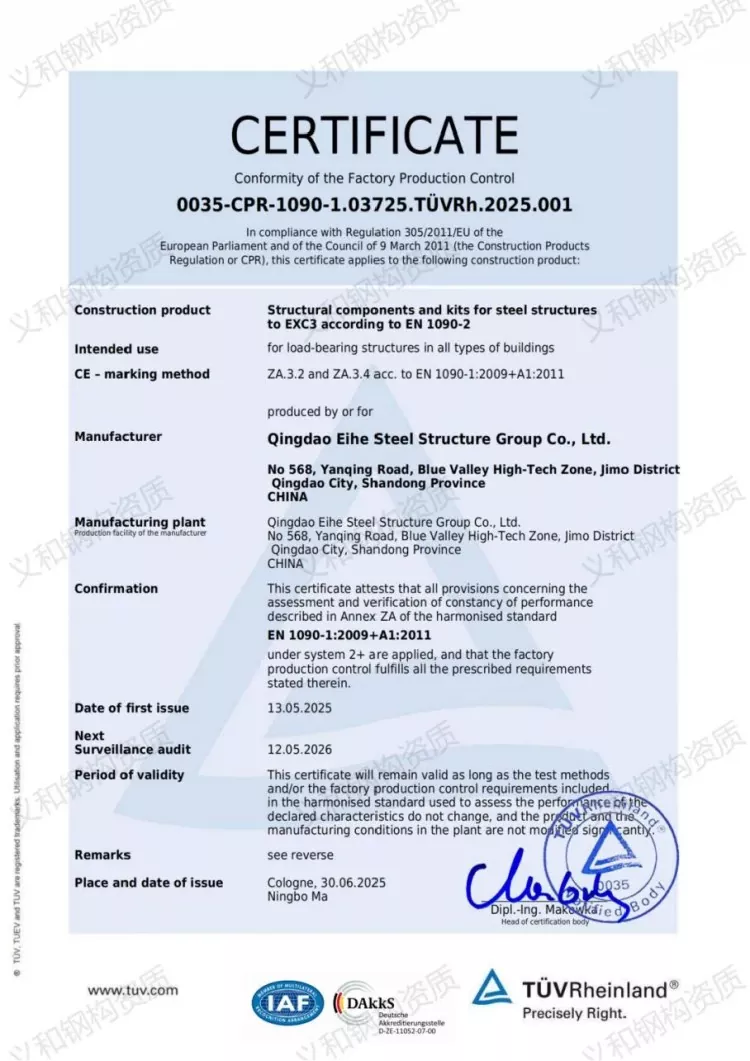

● I-European Standard

European Standard

Imininingwane Yezobuchwepheshe

ILarge Span Steel Space Frame Stadium yethula izinselele ngenxa yedizayini yayo yesikhathi eside, edinga amapharamitha obuchwepheshe aphezulu.

Into yepharamitha	Inkomba Yezobuchwepheshe
I-Span Range	30-200 m
Usayizi Wegridi	2.5–4.0 m
I-Height‑span ratio	1/8–1/15
Ukucaciswa Kwelungu	Ithubhu yensimbi eyindilinga
Uhlobo Oluhlangene	Ibhola elibhontshiwe / Ibhola elishiselwe
Ibanga Lensimbi	I-Q235B / Q355B
Ukulawula Ukuphambuka	≤ L/250
Umthwalo Wophahla	0.3–0.6 kN/m²
Ukumelana Nesimo Somhlaba	Ibanga lesi-8
Ukumelana Nomoya	Ibanga le-12
Ukumelana Nomlilo	Ikilasi II
Ukwelashwa kwe-Anti-corrosion	I-hot-dip galvanizing / i-Three-layer coating
Impilo Yesevisi Yokuklama	Iminyaka engu-50

Njengomkhiqizo okwazi ukuzuza ibanga elikhulu kunawo wonke emhlabeni ezinkundleni zezemidlalo ezinkulu, iLarge Span Steel Space Frame Stadium iyisigaba esidume kakhulu phakathi kwezakhiwo zomphakathi ezinkulu ezakhiwe yi-EHSS.

Ngobuciko obuyinkimbinkimbi nokuklama okucophelelayo, imikhiqizo yethu yonga kakhulu izinto zensimbi, ikunikeza izixazululo zokwakha ezingabizi kakhulu.

▷ Intengo Yereferensi

Uhlobo	Ukusetshenziswa Kwensimbi	Intengo (kuhlanganise nokufaka)
Uhlaka lwesikhala olujwayelekile	35-55 kg/m²	450–950 RMB/m²
Uhlaka lwesikhala olumise okukhethekile & oluyinkimbinkimbi	50-80 kg/m²	700–1,600 RMB/m²
Okuphelele	45-65 kg/m²	7,000–9,000 RMB/T
